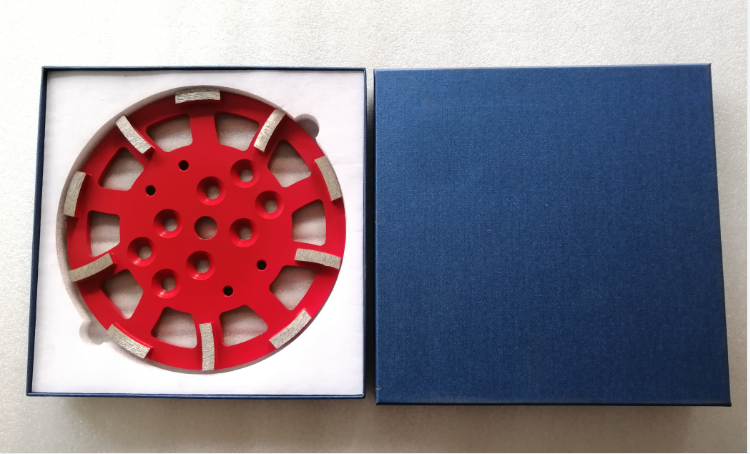

10 Inch 250mm Fan Segments Diamond Grinding Disc
The 250mm Fan Segments Diamond Grinding Disc is an industrial-grade tool designed for heavy-duty grinding, typically mounted on large floor grinding machines. Its core structure consists of a red metal body with multiple mounting holes and fan-shaped diamond segments arranged radially around the periphery. This design is intended to efficiently remove coatings, unevenness, or old finishes from hard materials such as concrete, terrazzo, and epoxy, preparing the surface for subsequent polishing or coating processes.
Technical Specifications
| Description | Diameter(mm) | Segment Teeth(pcs) | Grit | Packaging | Applied Machine | Application |
| Fan Segments Diamond Grinding Disc | 250 | 20 | 16#,24#,36#,46#,60#,80#,120#,180#, 230#,270#,320# | 1 pieces / box | Blastrac, Husqvarna, EDCO, MK, SPE, Floorex, etc. | Concrete,Terrazzo And Stone’s floors |
Other specifications are available upan request.
Key Characteristics
🔹High-Efficiency Grinding: The fan-shaped segment design increases the contact area and cutting force with the ground, enabling rapid material removal and significantly improving work efficiency.
🔹Durable and Long-Lasting: Diamond abrasives possess extremely high hardness and wear resistance, resulting in a long service life when processing hard and brittle materials like concrete and stone, thus lowering overall costs.
🔹Excellent Heat Dissipation: The multiple through-holes in the disc body not only reduce weight but also promote air circulation during high-speed rotation, helping to dissipate heat and prevent the disc from deforming or getting damaged due to overheating.
🔹Strong Versatility: Diamond segments of different grits (coarse, medium, fine) can be replaced according to specific grinding requirements, enabling a range of processes from rough grinding to fine grinding.
Usage Scenarios
🔹Floor Treatment: Widely used for leveling newly poured concrete floors, renovating old floors, and removing epoxy floor coatings.
🔹Stone Processing: Can be used for rough grinding and leveling of stone slabs such as granite and marble.
🔹Construction: Suitable for surface treatment of large concrete structures like bridges, tunnels, and parking lots.
🔹Industrial Maintenance: Used for floor maintenance and coating treatment in industrial settings such as factory workshops and warehouses.
Key Advantages
Why Choose Our Diamond Tools?
🔹 Advanced Diamond Formula
Optimized segment formula ensures faster cutting and longer lifespan.
🔹 High Strength Bonding
Hot-pressed sintering technology improves segment durability.
🔹 Smooth Cutting Performance
No chipping, no burning, stable cutting experience.
🔹 Wide Compatibility
Suitable for various machines and working conditions.
🔹Our Manufacturing Strength
• Advanced sintering technology
• Strict quality inspection system
• Over 10 years of production experience
• Professional R&D team
👉 All products are tested before delivery.
Payment item & shipping
🔹 Payment items?
Bank T/T,L/C,Western Union,Paypal ect
🔹 Delivery method?
• Trail order or testing order with light weight(<45kgs), we recommend Express Service.
• Normal order weighting over 45kgs, we recommend Air transportation.
• For large orders or heavy weights, we recommend sea transportation.
Frequently Asked Questions (FAQ)
🔹Q1:What material is your product ?
Our products are made from diamond , we have sintering, electroplating , and brazing technology.
🔹 Q2: How will you guarantee the quality is eligible ?
We have 3 times to examine the quality of products , first : pre-production , second : post-production , third : before delivery.So you needn't to worry about it.
🔹Q3: Can you provide OEM service?
Yes, we support OEM and customized packaging.
🔹 Q4: What is your MOQ?
Usually 3 pcs, but flexible for trial orders.
🔹Q5: What is the delivery time?
7–15 days depending on quantity and styles.
🔹 Q6: How could I complete an order ?
• Sending your inquiry/requirements about products.
• We confirm your inquiry.
• Discuss with the details of products.
• you pay us down payment , then we begin to produce stuff .
• When you receive all the goods , you can check it first, if no question , then the order is finished , if there are some questions about quality , then we can deal with it together , we are responsible for the after sales.
Ready to get the best cutting performance?
