Diamond Wire Saw Beads For Quarrying Granite Marble Stone
Diamond Wire Saw Beads are the "teeth" of the diamond wire saw. Their core is made by sintering diamond abrasives with a metal bond matrix (e.g., iron-based, cobalt-based, nickel-based) through a powder metallurgy process. Each bead has a central hole for threading onto a high-strength, multi-strand steel wire rope. During cutting, the beads move at high speed, using the diamond particles on their surface to grind and cut through materials like stone, concrete, and metal.
Technical Specifications
| Diameter(mm) | Connection | Bead/Meter | Stone Hardness | Efficiency | Life Span | Line Speed | Application |
| Ø11*6.0 | Rubber | 36/40 | Class1-2 | 12-22 | 20-45 | 38-40 | Marble |
| Class3-4 | 9-16 | 25-30 | 36-40 | Marble | |||
| Class5-6 | 6-10 | 10-20 | 35-36 | Marble | |||
| Ø11.0*6.0 | Rubber+Spring | 36/40 | Class1-2 | 12-22 | 25-45 | 38-40 | Marble |
| Class3-4 | 9-16 | 18-35 | 36-40 | Marble | |||
| Class5-6 | 6-10 | 12-22 | 35-36 | Marble | |||
| Ø11.5*6.0 | Plastic+Spring | 40 | Class1-2 | 12-25 | 30-50 | 38-40 | Marble |
| Class3-4 | 8-15 | 20-40 | 36-40 | Marble | |||
| Class5-6 | 5-12 | 15-25 | 35-36 | Marble | |||
Ø11.0*6.0-Ø8.0*10.0 | Spring | 28 | Class1-2 | 10-18 | 20-40 | 38-40 | Marble |
| Class3-4 | 8-15 | 15-25 | 36-40 | Marble | |||
| Class5-6 | 5-8 | 10-20 | 35-36 | Marble | |||
Ø11.5*6.0 | Rubber | 40 | Class1-2 | 15-30 | 18-30 | 33-34 | Granite |
| Class3-4 | 12-25 | 12-22 | 31-32 | Granite | |||
| Class5-6 | 8-15 | 8-15 | 28-30 | Granite | |||
Ø12.0*6.0 | Rubber | 40 | Class1-2 | 15-26 | 16-35 | 33-34 | Granite |
| Class3-4 | 12-20 | 12-25 | 31-32 | Granite | |||
| Class5-6 | 6-10 | 10-16 | 28-30 | Granite |
Other specifications are available upan request.
Key Characteristics
🔹High Hardness and Wear Resistance: Diamond, being the hardest known natural material, endows the beads with exceptional cutting ability and wear resistance, enabling them to effectively cut high-hardness materials such as granite and reinforced concrete.
🔹High Bonding Strength: A high-quality metal bond matrix can firmly hold the diamond particles, preventing them from premature(falling off) during cutting, thus ensuring the bead's service life and cutting efficiency.
🔹Good Self-Sharpening Ability: During cutting, the bond matrix wears away at a controlled rate, continuously exposing new, sharp diamond particles to maintain consistent cutting performance.
🔹Variety of Specifications: Depending on the material to be cut (e.g., marble, granite, concrete) and the application (e.g., quarrying, block squaring, building demolition), the beads are available in various diameters, heights, diamond concentrations, grit sizes, and bond formulations to optimize performance.
Usage Scenarios

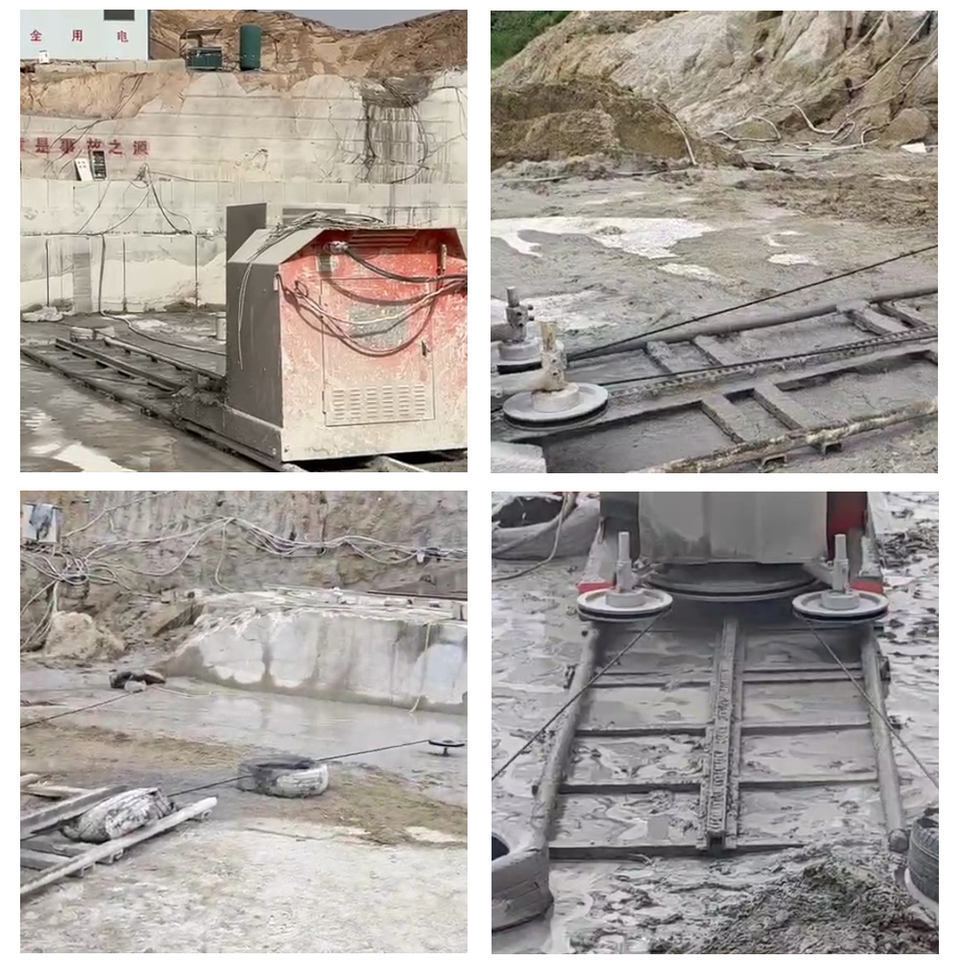

🔹Quarrying: Used to separate massive stone blocks from the mountain vein.
🔹Stone Processing: Used to cut irregular stone blocks into standard-sized cuboids (squaring) or into slabs.
🔹Construction and Demolition: Used to cut reinforced concrete bridges, pillars, walls, etc., offering advantages of no vibration, low noise, and a smooth cutting surface.
🔹Special Fields: Such as cutting subsea pipelines and decommissioning nuclear power plant facilities, where extremely high safety and precision are required.
Key Advantages
Why Choose Our Diamond Tools?
🔹 Advanced Diamond Formula
Optimized segment formula ensures faster cutting and longer lifespan.
🔹 High Strength Bonding
Hot-pressed sintering technology improves segment durability.
🔹 Smooth Cutting Performance
No chipping, no burning, stable cutting experience.
🔹 Wide Compatibility
Suitable for various machines and working conditions.
🔹Our Manufacturing Strength
• Advanced sintering technology
• Strict quality inspection system
• Over 10 years of production experience
• Professional R&D team
👉 All products are tested before delivery.
Payment item & shipping
🔹 Payment items?
Bank T/T,L/C,Western Union,Paypal ect
🔹 Delivery method?
• Trail order or testing order with light weight(<45kgs), we recommend Express Service.
• Normal order weighting over 45kgs, we recommend Air transportation.
• For large orders or heavy weights, we recommend sea transportation.
Frequently Asked Questions (FAQ)
🔹Q1:What material is your product ?
Our products are made from diamond , we have sintering, electroplating , and brazing technology.
🔹 Q2: How will you guarantee the quality is eligible ?
We have 3 times to examine the quality of products , first : pre-production , second : post-production , third : before delivery.So you needn't to worry about it.
🔹Q3: Can you provide OEM service?
Yes, we support OEM and customized packaging.
🔹 Q4: What is your MOQ?
Usually 3 pcs, but flexible for trial orders.
🔹Q5: What is the delivery time?
7–15 days depending on quantity and styles.
🔹 Q6: How could I complete an order ?
• Sending your inquiry/requirements about products.
• We confirm your inquiry.
• Discuss with the details of products.
• you pay us down payment , then we begin to produce stuff .
• When you receive all the goods , you can check it first, if no question , then the order is finished , if there are some questions about quality , then we can deal with it together , we are responsible for the after sales.
