Industrial Grade 350mm 14inch Turbo Diamond Saw Blade Cutter Hot Press Concrete Asphalt Road Cutting Disc
This saw blade is a Turbo Segment Type Concrete Blade.
Simply put, it combines the chip removal capability of a "segmented blade" with the smooth cutting effect of a "continuous rim blade". Its core feature is the wavy or slotted design on the cutting edge, which acts like a turbo fan to generate strong airflow, helping with heat dissipation and debris removal.
This type of blade is typically used for cutting hard materials of medium hardness, with the most common applications including:
Concrete
Brick
Stone / Granite
Tile (especially hard porcelain tiles)
Technical Specifications
| Diameter(inch) | Diameter(mm) | Core Thickness(mm) | Segment Size(mm) | Hole(mm) |
| 12 | 300 | 2.2 | 40*3.2*12(15) | 25.4/50/60 |
| 14 | 350 | 2.4 | 40*3.2*12(15) | 25.4/50/60 |
| 16 | 400 | 2.8 | 40*3.6*12(15) | 25.4/50/60 |
| 18 | 450 | 3.0 | 40*3.6*12(15) | 25.4/50/60 |
| 20 | 500 | 3.0 | 40*4.0*12(15) | 25.4/50/60 |
| 24 | 600 | 3.4 | 40*4.0*12(15) | 25.4/50/60 |
Other specifications are available upan request.
Key Characteristics
🔹 Diamond Segments: High-quality diamond-impregnated rim ensures superior hardness and wear resistance for cutting tough concrete and reinforced materials
🔹Laser Welding: Segments are securely attached to the steel core via laser welding, providing exceptional strength and safety under high loads.
🔹Cooling Holes: The body features multiple circular holes that improve airflow to dissipate heat effectively and reduce noise/vibration.
🔹Turbo Rim Design: The segmented edge allows for rapid slurry removal (chip ejection), preventing clogging and ensuring faster cutting speeds.

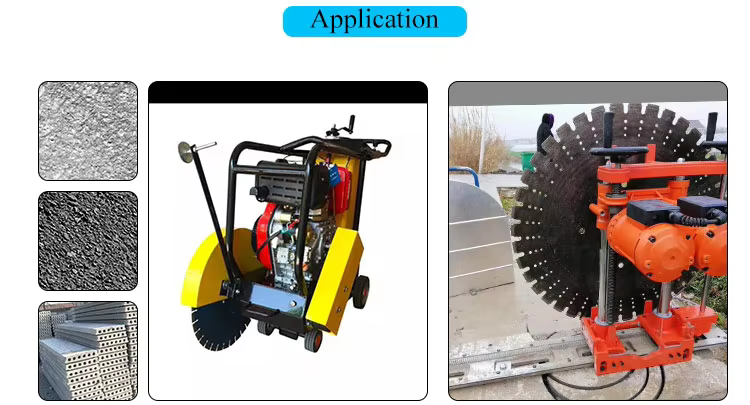

Application Scenarios&Usage Suggestions
🔹Applicable Materials: Mainly used for cutting reinforced concrete, asphalt, bricks, stone, and other hard and brittle building materials.
🔹Applicable Conditions: It is suitable for municipal road maintenance, opening holes in building site floors, or cutting walls during indoor decoration.
🔹Match Equipment: Ensure the arbor hole of the blade matches the spindle of the cutting machine.
🔹Wet Cutting Preferred: When conditions allow, try to use water cooling cutting as much as possible, which can greatly extend the blade's life and achieve better cutting results.
🔹Safety Protection: Always wear safety goggles, a dust mask, and earplugs during operation.
👉 Works perfectly in both dry and wet conditions.
Key Advantages
Why Choose Our Diamond Tools?
🔹 Advanced Diamond Formula
Optimized segment formula ensures faster cutting and longer lifespan.
🔹 High Strength Bonding
Hot-pressed sintering technology improves segment durability.
🔹 Smooth Cutting Performance
No chipping, no burning, stable cutting experience.
🔹 Wide Compatibility
Suitable for various machines and working conditions.
🔹Our Manufacturing Strength
• Advanced sintering technology
• Strict quality inspection system
• Over 10 years of production experience
• Professional R&D team
👉 All products are tested before delivery.
Payment item & shipping
🔹 Payment items?
Bank T/T,L/C,Western Union,Paypal ect
🔹 Delivery method?
• Trail order or testing order with light weight(<45kgs), we recommend Express Service.
• Normal order weighting over 45kgs, we recommend Air transportation.
• For large orders or heavy weights, we recommend sea transportation.
Frequently Asked Questions (FAQ)
🔹Q1:What material is your product ?
Our products are made from diamond , we have sintering, electroplating , and brazing technology.
🔹 Q2: How will you guarantee the quality is eligible ?
We have 3 times to examine the quality of products , first : pre-production , second : post-production , third : before delivery.So you needn't to worry about it.
🔹Q3: Can you provide OEM service?
Yes, we support OEM and customized packaging.
🔹 Q4: What is your MOQ?
Usually 3 pcs, but flexible for trial orders.
🔹Q5: What is the delivery time?
7–15 days depending on quantity and styles.
🔹 Q6: How could I complete an order ?
• Sending your inquiry/requirements about products.
• We confirm your inquiry.
• Discuss with the details of products.
• you pay us down payment , then we begin to produce stuff .
• When you receive all the goods , you can check it first, if no question , then the order is finished , if there are some questions about quality , then we can deal with it together , we are responsible for the after sales.
