Silent Diamond Abrasive Calibrating Wheel
Diamond Silent Calibrating Milling Wheel, also commonly known as a Diamond Thickness Calibrating Wheel or Stone Milling Wheel. This is a heavy-duty industrial tool designed for the precision machining of hard materials like stone and ceramics, primarily used for thickness calibration and surface leveling of slabs.

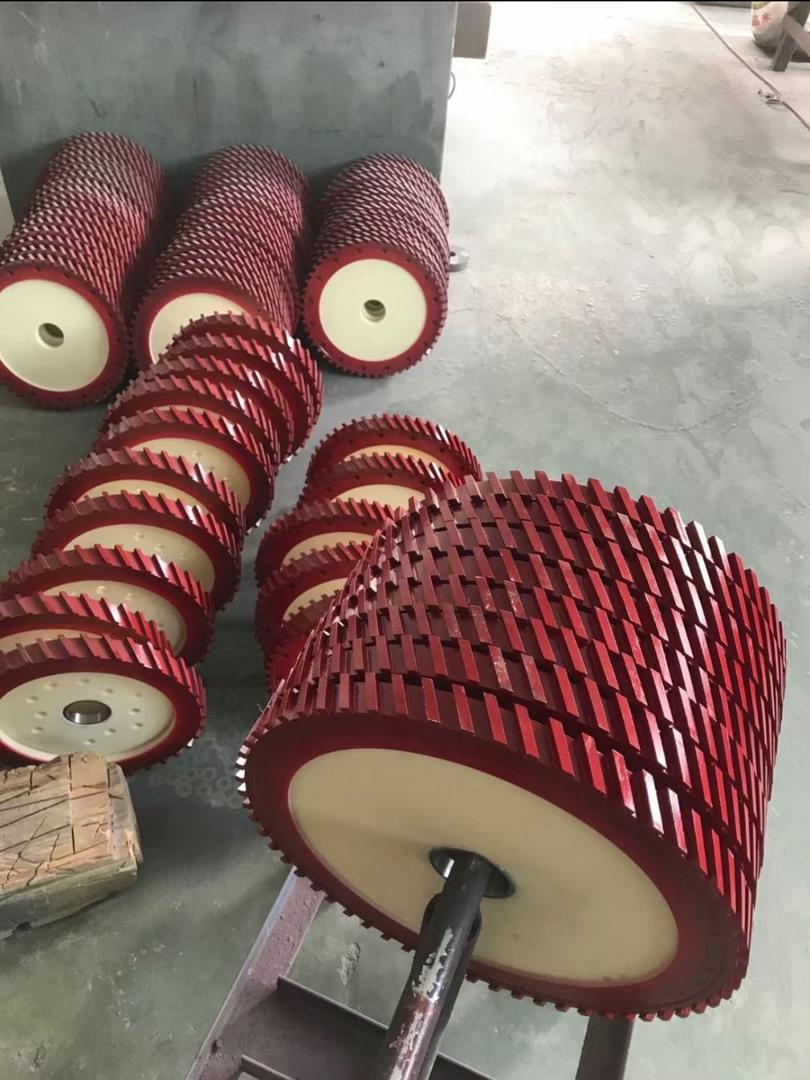

The core of this tool is a solid metal base, with multiple independent diamond tool heads (segments) welded to its outer edge. As can be seen in the picture, its unique helical toothed segmented design. This structure not only enhances the cutting force but also effectively removes chips and dissipates heat. The center usually has bearing mounting positions and is used for installation on bridge cutting machines, CNC machining centers or dedicated calibration machines. Its main function is to perform high-precision thickness uniformity and surface flatness treatment on stone slabs after cutting, and it is a key consumable on the stone deep processing production line.
Technical Specifications
| Diameter(inch) | Diameter(mm) | Segment Height(mm) | Inner Hole(mm) |
| 14/16/18/20/28 | 350/400/450/500/600 | 20/30/40/50 | 50/60 |
| 14/16/18/20/28 | 350/400/450/500/600 | 20/30/40/50 | |
| 14/16/18/20/28 | 350/400/450/500/600 | 20/30/40/50 |
Other specifications are available upan request.
Key Characteristics
🔹Silent Operation: The wheel's core body typically features a special design (such as resin filling, special alloys, or internal damping layers) that effectively reduces noise and vibration generated during high-speed rotation, thereby improving the working environment.
🔹High-Precision Calibration: The diamond segments are precisely arranged and welded, enabling accurate control over stone thickness. It can maintain extremely tight tolerances, ensuring uniform slab thickness.
🔹High Efficiency and Wear Resistance: Made from high-quality diamond grains sintered with a metal bond, it offers exceptional wear resistance and cutting efficiency, resulting in a long service life suitable for high-volume, continuous operation.
🔹Segmented Design: The independent segments facilitate the flow of coolant or air, quickly dissipating heat to prevent slab cracking due to overheating, while also improving chip removal efficiency.
Usage Scenarios

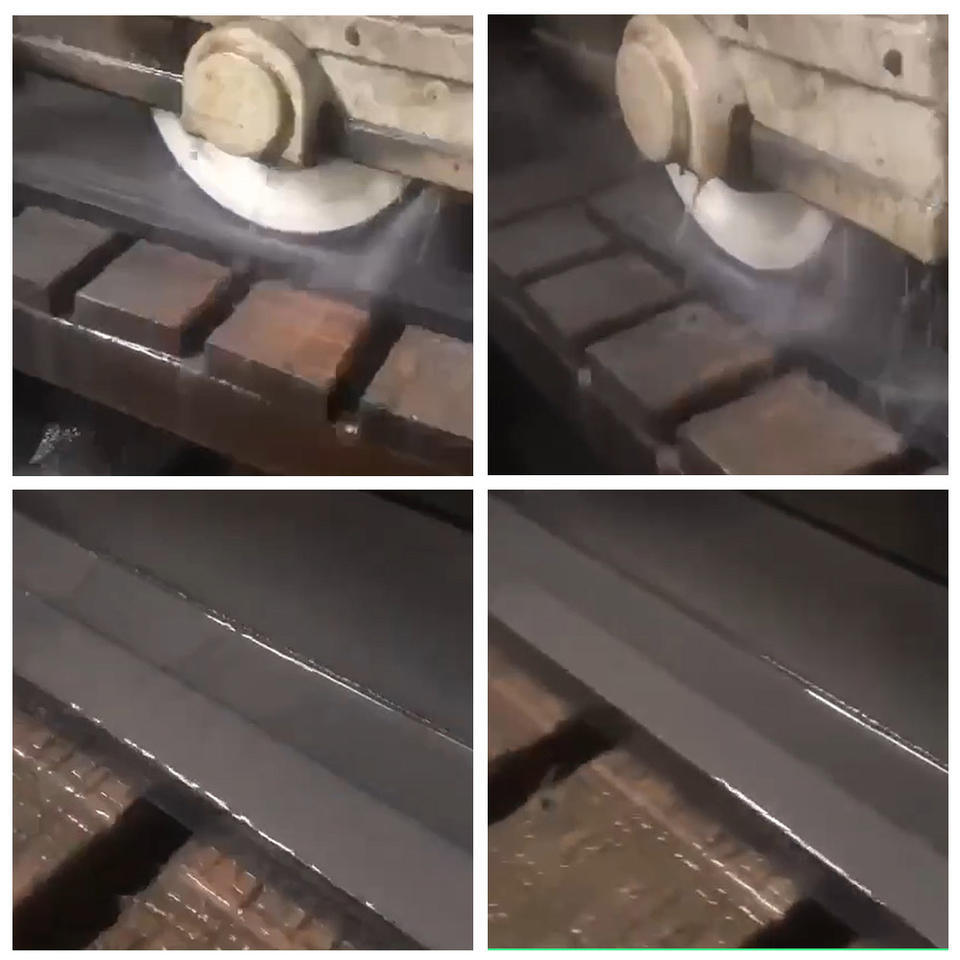

🔹Stone Processing Plants: Used for thickness calibration and surface rough grinding of granite, marble, quartz, and other large slabs. It is a standard component in stone production lines.
🔹Ceramic Production: Employed for thickness control and edge trimming of large-format ceramic slabs.
🔹Engineered Stone Fabrication: Used for precision milling and leveling of engineered quartz and other composite materials.
🔹Concrete Precast: Applied for surface leveling of large precast concrete panels.
Key Advantages
Why Choose Our Diamond Tools?
🔹 Advanced Diamond Formula
Optimized segment formula ensures faster cutting and longer lifespan.
🔹 High Strength Bonding
Hot-pressed sintering technology improves segment durability.
🔹 Smooth Cutting Performance
No chipping, no burning, stable cutting experience.
🔹 Wide Compatibility
Suitable for various machines and working conditions.
🔹Our Manufacturing Strength
• Advanced sintering technology
• Strict quality inspection system
• Over 10 years of production experience
• Professional R&D team
👉 All products are tested before delivery.
Payment item & shipping
🔹 Payment items?
Bank T/T,L/C,Western Union,Paypal ect
🔹 Delivery method?
• Trail order or testing order with light weight(<45kgs), we recommend Express Service.
• Normal order weighting over 45kgs, we recommend Air transportation.
• For large orders or heavy weights, we recommend sea transportation.
Frequently Asked Questions (FAQ)
🔹Q1:What material is your product ?
Our products are made from diamond , we have sintering, electroplating , and brazing technology.
🔹 Q2: How will you guarantee the quality is eligible ?
We have 3 times to examine the quality of products , first : pre-production , second : post-production , third : before delivery.So you needn't to worry about it.
🔹Q3: Can you provide OEM service?
Yes, we support OEM and customized packaging.
🔹 Q4: What is your MOQ?
Usually 3 pcs, but flexible for trial orders.
🔹Q5: What is the delivery time?
7–15 days depending on quantity and styles.
🔹 Q6: How could I complete an order ?
• Sending your inquiry/requirements about products.
• We confirm your inquiry.
• Discuss with the details of products.
• you pay us down payment , then we begin to produce stuff .
• When you receive all the goods , you can check it first, if no question , then the order is finished , if there are some questions about quality , then we can deal with it together , we are responsible for the after sales.
Ready to get the best cutting performance?
