Wet Diamond Core Drill Bit for Granite Marble Stone Premium Quality Wet Use Hole Saw Cutter
Wet Diamond Core Drill Bits, specifically designed for high-precision, large-diameter circular drilling on hard and brittle materials such as granite, marble, stone, and tiles. Featuring a hollow cylindrical structure, it efficiently drills large-diameter circular holes with smooth edges in hard and brittle materials such as granite and marble. It must be used with a continuous water supply for cooling, which not only prevents the drill bit from overheating and burning out but also flushes away stone dust, thereby ensuring high-quality hole walls and extending the tool's service life.
Technical Specifications
| Diameter(inch) | Diameter(mm) | Segment Thickness(mm) | Segment Height(mm) | Total Length(mm) | Thread type |
| 0.24 | 6 | 10 | 80/100 | M10, M12, M14, 5/8"-11, 1/2"Gas | |
| 0.32 | 8 | 10 | 80/100 | M10, M12, M14, 5/8"-11, 1/2"Gas | |
| 0.4 | 10 | 10 | 80/100 | M10, M12, M14, 5/8"-11, 1/2"Gas | |
| 0.48 | 12 | 10 | 80/100 | M10, M12, M14, 5/8"-11, 1/2"Gas | |
| 0.8 | 20 | 2.6/3.5 | 10 | 80/100 | M10, M12, M14, 5/8"-11, 1/2"Gas |
| 1.0 | 25 | 2.6/3.5 | 10 | 80/100 | M10, M12, M14, 5/8"-11, 1/2"Gas |
| 1.2 | 30 | 2.6/3.5 | 10 | 80/100 | M10, M12, M14, 5/8"-11, 1/2"Gas |
| 1.3 | 32 | 2.6/3.5 | 10 | 80/100 | M10, M12, M14, 5/8"-11, 1/2"Gas |
| 1.4 | 35 | 2.6/3.5 | 10 | 80/100 | M10, M12, M14, 5/8"-11, 1/2"Gas |
| 1.5 | 38 | 2.6/3.5 | 10 | 80/100 | M10, M12, M14, 5/8"-11, 1/2"Gas |
| 1.6 | 40 | 2.6/3.5 | 10 | 80/100 | M10, M12, M14, 5/8"-11, 1/2"Gas |
| 2.0 | 50 | 2.6/3.5 | 10 | 80/100 | M10, M12, M14, 5/8"-11, 1/2"Gas |
Other specifications are available upan request.
Key Characteristics
🔹 Diamond Segments: High-quality diamond-impregnated rim ensures superior hardness and wear resistance for cutting tough concrete and reinforced materials
🔹Laser Welding: Segments are securely attached to the steel core via laser welding, providing exceptional strength and safety under high loads.
🔹Cooling Holes: The body features multiple circular holes that improve airflow to dissipate heat effectively and reduce noise/vibration.
🔹Turbo Rim Design: The segmented edge allows for rapid slurry removal (chip ejection), preventing clogging and ensuring faster cutting speeds.
Application Scenarios

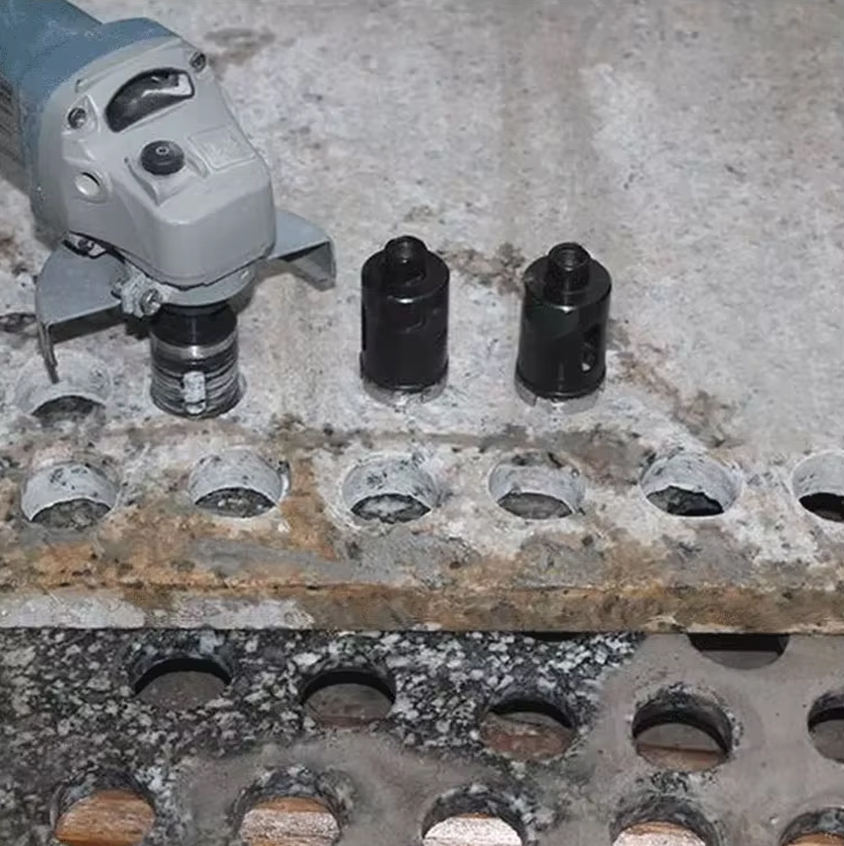

🔹Stone Fabrication: Drilling holes in marble or granite kitchen countertops, bathroom vanities, floors, or wall panels for installing sinks, faucets, and pipelines.
🔹Tile Installation: Creating holes for water pipes, electrical conduits, and outlet boxes in wall and floor tiles.
🔹Construction: Core sampling (taking core samples) in concrete walls or floors for testing, or drilling holes for installing anchors and pipes.
👉Important Note: Please ensure a continuous water supply for cooling during drilling. Never dry drill, as this will rapidly damage the drill bit and may cause safety hazards.
Key Advantages
Why Choose Our Diamond Tools?
🔹 Advanced Diamond Formula
Optimized segment formula ensures faster cutting and longer lifespan.
🔹 High Strength Bonding
Hot-pressed sintering technology improves segment durability.
🔹 Smooth Cutting Performance
No chipping, no burning, stable cutting experience.
🔹 Wide Compatibility
Suitable for various machines and working conditions.
🔹Our Manufacturing Strength
• Advanced sintering technology
• Strict quality inspection system
• Over 10 years of production experience
• Professional R&D team
👉 All products are tested before delivery.
Payment item & shipping
🔹 Payment items?
Bank T/T,L/C,Western Union,Paypal ect
🔹 Delivery method?
• Trail order or testing order with light weight(<45kgs), we recommend Express Service.
• Normal order weighting over 45kgs, we recommend Air transportation.
• For large orders or heavy weights, we recommend sea transportation.
Frequently Asked Questions (FAQ)
🔹Q1:What material is your product ?
Our products are made from diamond , we have sintering, electroplating , and brazing technology.
🔹 Q2: How will you guarantee the quality is eligible ?
We have 3 times to examine the quality of products , first : pre-production , second : post-production , third : before delivery.So you needn't to worry about it.
🔹Q3: Can you provide OEM service?
Yes, we support OEM and customized packaging.
🔹 Q4: What is your MOQ?
Usually 3 pcs, but flexible for trial orders.
🔹Q5: What is the delivery time?
7–15 days depending on quantity and styles.
🔹 Q6: How could I complete an order ?
• Sending your inquiry/requirements about products.
• We confirm your inquiry.
• Discuss with the details of products.
• you pay us down payment , then we begin to produce stuff .
• When you receive all the goods , you can check it first, if no question , then the order is finished , if there are some questions about quality , then we can deal with it together , we are responsible for the after sales.
Ready to get the best cutting performance?
